Roving Frame FT6E - FT7E - FT6DE - FT7DE

Fiber: cotton, man made fiber and blends up to 60 mm. Up to 240 spindles.


Description

  • Up to 240 spindles (FT6E / FT6DE), up to 192 spindles (FT7E / FT7DE)
  • Independent drives for drafting system, flyers, spindles and bobbin rail
  • Creel with hexagonal rollers to prevent false draft of the slivers
  • 3-over-3 (or 4 over 4) drafting system with weighting arms with pneumatic or spring load
  • Single photocell or individual sensors to stop the machine in case of roving break
  • Multi-motor spindles drive: 1 motor  every 32 spindles (FT6E - FT6DE), 1 motor every 24 spindles (FT7E – FT7DE) to minimize energy consumption
  • Flyers and spindles driven by timing belts to reduce noise and maintenance
  • Optimization of the spindles speed to keep roving tension within the desired range
  • Semiautomatic or automatic doffing
  • Automatic piecing of the roving after doff
  • Controlled stop of the machine in case of power failure
  • User-friendly touch screen display
  • Connection to YarNet for production management

Technical table

Raw material

cotton, man made fiber and blends up to 60 mm

Count rangefrom Ne 0.40 till Ne 3.5
Twist range

Tw/" 0,30 - 3,55

Draft range from 4 till 20
FT6E / FT6DEUp to 240 spindles gauge 110 mm, bobbins 6” x 16”
FT7E / FT7DEUp to 192 spindles gauge 130 mm, bobbins 6” x 16” or 7” x 16

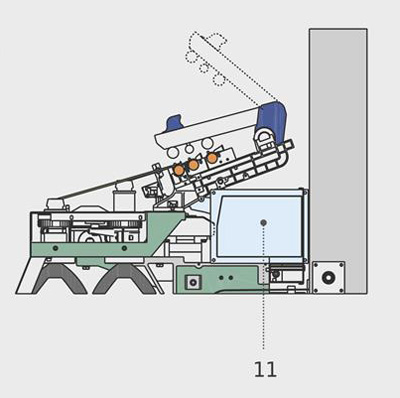

 Technical drawing

FT6E - FT7E - FT6DE - FT7DE

1. Supports and doffing columns

2. Exchanger

3. Doffer rail

4. Intermediate leg

5. Flyer rail

6. Bobbin rail

7. Bobbin motor

8. Cylinder

9. Pressure arm

10. Sensor for roving breakages (optional)

11. Suction duct if installed

12. IBC
